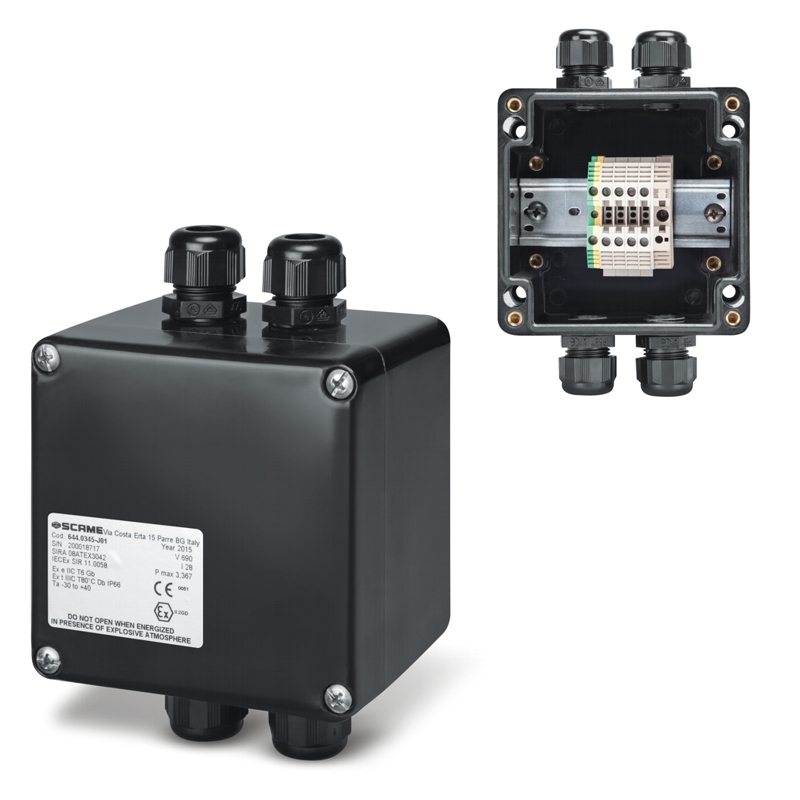

ZENITH-P 分線盒

ZENITH-P SERIES

Junction boxes in termosetting material?

for applications in zone 1/2 (gas) and zone 21/22 (dust)
在線訂購
產品詳情

ZENITH-P SERIES


Junction boxes in termosetting material


for applications in zone 1/2 (gas) and zone 21/22 (dust)



TECHDATA


Commercial series：ZENITH-P Series


Synthetical description：SURFACE MOUNTING BOX


Protection degree：Splash proof


Protection degree IP：IP66


Material：THERMOSETTING


Equipment：Junction box


Terminal block：14x2,5mm2  Cage Terminal


Dimensions：160x75x75mm


Cable entry：6xM20 Plugged


PLUGGED Rated current (value)：12A


Rated Sizing Voltage (Value)：690V


Maximum power dissipation：4,780W


Group and categories EX：II 2GD


Modo protezione gas：Ex eb IIC T6 Gb


Dust protection：Ex tb IIIC T80°C Db IP66


Ambient temperature Ta min：-30 °C


Ambient temperature Ta max：+40 °C


STANDARDS AND LAWS


EN 60079-31 (2014)[European Standard] Explosive atmospheres. Equipment dust ignition protection by enclosure "t"


IEC 60079-31 (2013)[International Standard] Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"


EN 60079-7 (2015)[European Standard] Explosive atmospheres. Equipment protection by increased safety "e"


IEC 60079-7 (2015)[International Standard] Explosive atmospheres - Part 7: Equipment protection by increased safety "e".


IEC 60079-0 (2017)[International Standard] Explosive atmospheres - Part 0: Equipment - General requirements


EN 60079-0 (2018)[European Standard] Explosive atmospheres. General requirements.


DIRECTIVE ATEX 2014/34/UE[European Directives] Atmosphere Explosive


MASTER DATA




CERTIFICATIONS


 UKCA marking；UK Conformity Assessed


 UE；Declaration of conformity


 EAC；Eurasian Conformity


Notifica ATEX；Product quality assurance notification


IMQ (IECex)；Istituto Italiano del Marchio di Qualità


IMQ ATEX；Istituto Italiano del Marchio di Qualità - Divisione ATEX


；UKCA marking [ELEMENT UKCA ATEX]；UK Conformity Assessed


Notifica ATEX；Product quality assurance notification




THERMOSETTING SURFACE MOUNTING BOX


COD.644.0210-J10，75x110x75mm IP66


COD.644.0220-J14，160x75x75mm IP66


COD.644.0240-J20，230x75x75mm IP66


COD.644.0345-J01，122x120x90mm IP66


COD.644.0345-J02，122x120x90mm IP66


COD.644.0345-J03，122x120x90mm IP66


COD.644.0345-J04，122x120x90mm IP66




MOUNTING BRACKETS KIT


COD.644.C075，75mm ，ZINC-Coated steel


COD.644.C120，120mm，ZINC-Coated steel


COD.644.C160，160mm，ZINC-Coated steel




WALL MOUNTING BRACKETS KIT


COD.644.D075，75mm ，ZINC-Coated steel


COD.644.D120，120mm，ZINC-Coated steel


COD.644.D160，160mm ，ZINC-Coated steel


COD.644.D250，250mm ，ZINC-Coated steel


COD.644.D405，405mm ，ZINC-Coated steel




KIT FOR PADLOCKING


COD.644.G001，75x55mm，ZINC-Coated steel


COD.644.G002，75x75mm，ZINC-Coated steel


COD.644.G003，120x90mm，ZINC-Coated steel


COD.644.G004，160x90mm，ZINC-Coated steel


COD.644.G005，250x120mm，ZINC-Coated steel


COD.644.G006，405x165mm，ZINC-Coated steel


ZENITH-P系列接線盒的設計可確保即使在極端的大氣和溫度條件下，也具有出色的機械抗沖擊性和耐化學劑性，這得益于SMC技術所使用的玻璃纖維增強聚酯（GRP），使其幾乎堅不可摧。可靠性和性使ZENITH-P接線盒成為適合石油天然氣、化工和制藥行業(yè)應用的產品。固定點位于盒子的輪廓內，但在密封件外。壁厚允許使用機床創(chuàng)建入口孔。箱體和連接法蘭的模塊化尺寸允許快速構建尺寸和形狀的定制組合外殼。ZENITH-P箱還可以配備排水閥和呼吸閥。


The junction boxes of the ZENITH-P series are designed to guarantee excellent mechanical resistance to impacts and to chemical agents, even under extreme atmospheric and temperature conditions, thanks to the glass-fiber reinforced polyester used (GRP), obtained by SMC technology which makes it virtually indestructible. Reliability and resistance make ZENITH-P junction boxes the most suitable products for applications in the oil & gas, chemical and pharmaceutical industries. The fixing points are inside the profile of the boxes, but outside the seal. The wall thickness allows the creation of entry holes using machine tools. The modular dimensions of the boxes and the coupling flanges allow a rapid construction of customized combined enclosures in a wide range of sizes and shapes. ZENITH-P boxes can also be supplied with drainage and breathing valves.
