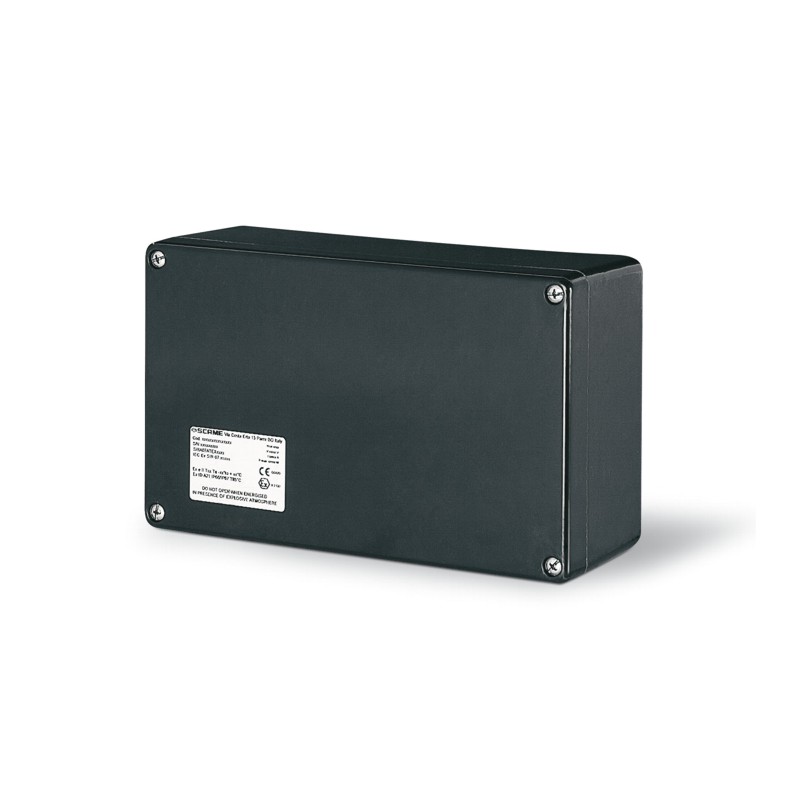

ZENITH-P SERIES--Empty enclosures

Junction boxes in termosetting material

for applications in zone 1/2 (gas) and zone 21/22 (dust)
